LCHUB 1HD-FT Turbocharger Upgrade Stage 2

1HD-FT Turbocharger Upgrade Stage 2

LCHUB SKU: 17201-CT26B

OEM: 17201-17030

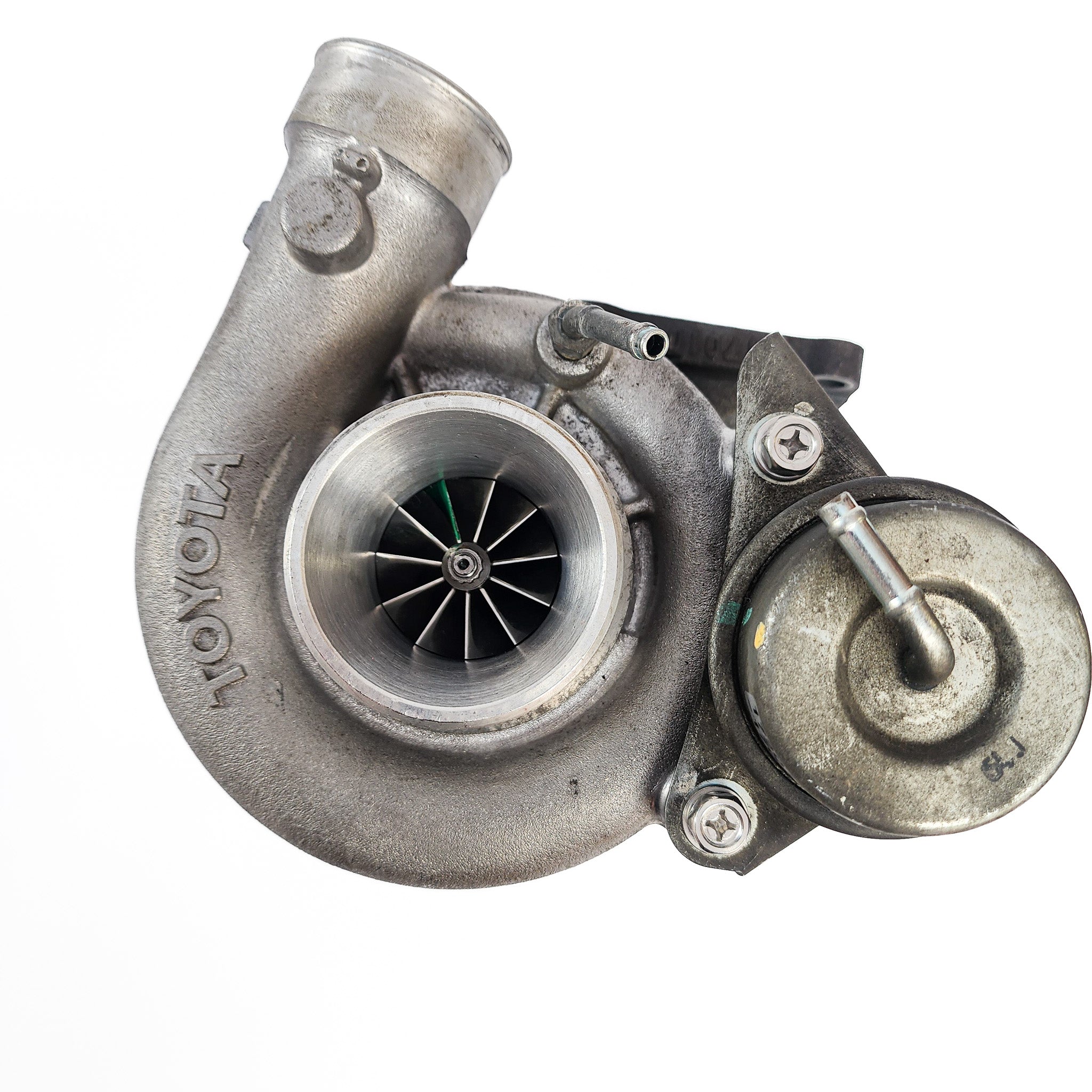

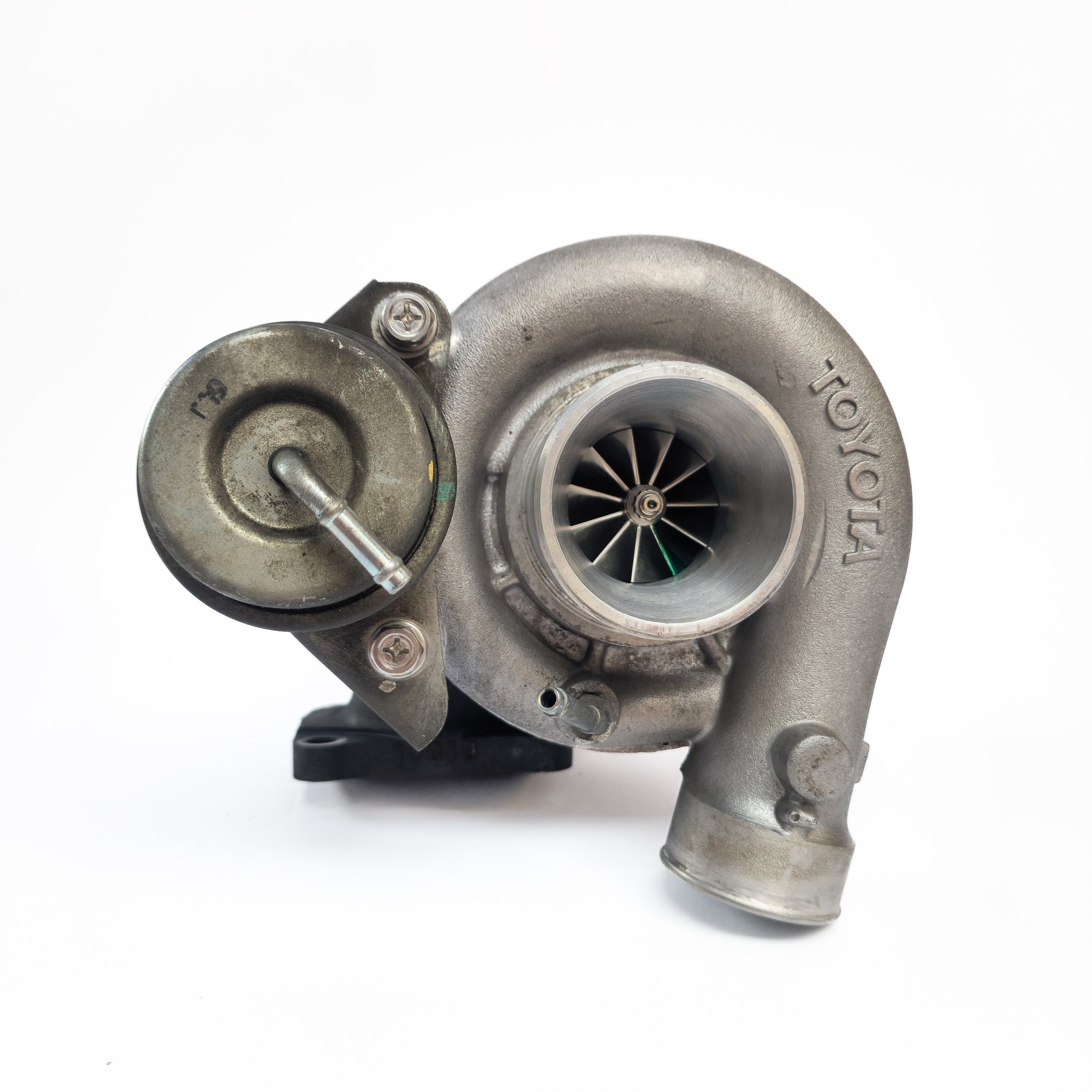

This Stage 2 CT26 11+0 turbocharger has been designed with Kiwi touring and four-wheel driving in mind. We opted for a more responsive design than the generic ‘high-flow’ units on the market, with a much lighter rotating assembly than what’s commonly available, all inside of a Toyota genuine compressor and turbocharger housing — to ensure a complete bolt-on solution.

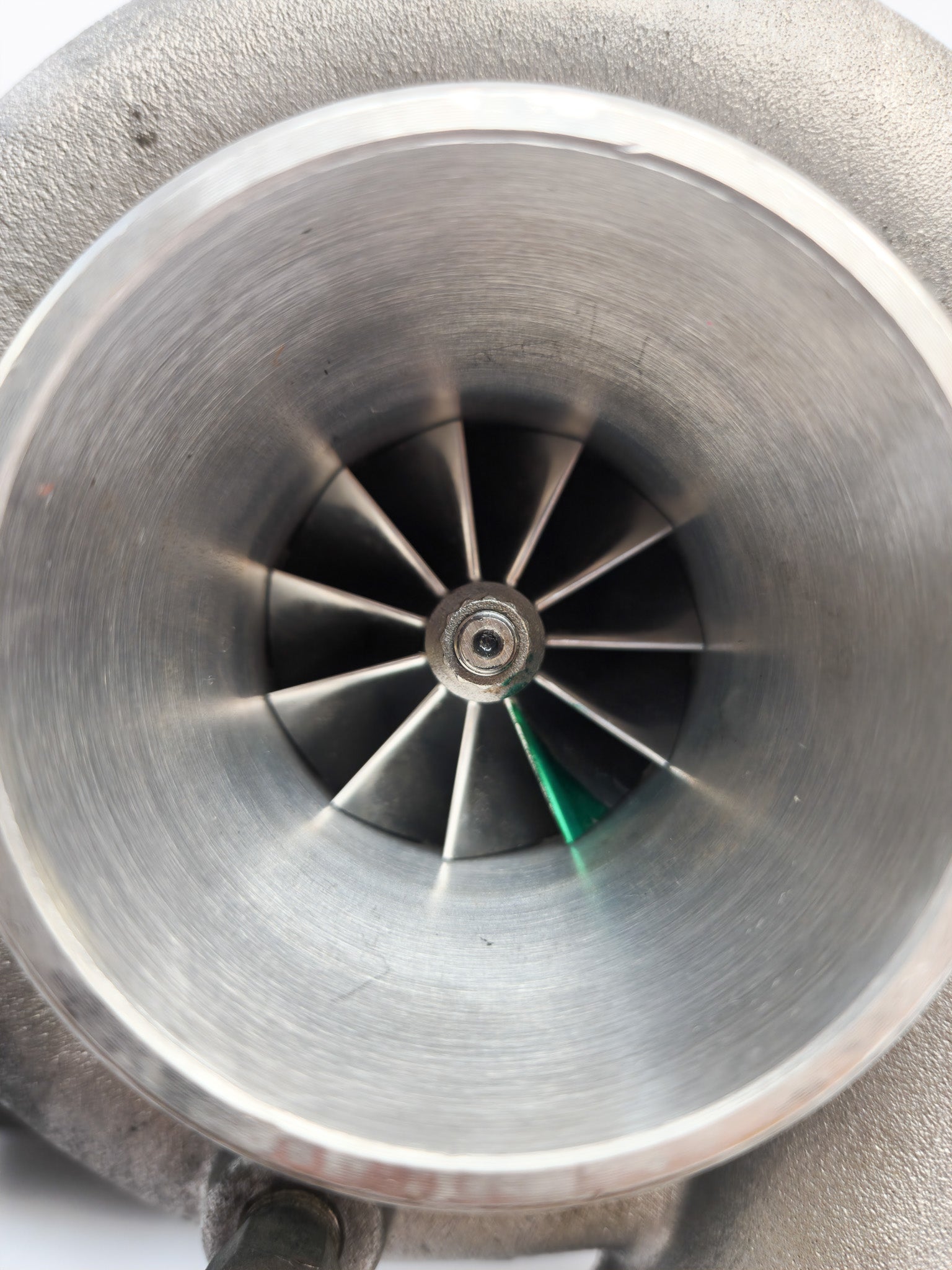

With a small-nosed Supra-sized GTX billet compressor wheel, we’ve achieved an 86% increase in overall size over the factory cast compressor wheel while reducing overall weight significantly. The 45.8mm compressor flows a staggering 38–40 lb/min and is complimented by a brass bearing upgrade to handle the additional load.

On the turbine side, we’ve reduced weight by 23% — all while improving flow, with a modern nine-blade turbine design. With the key target being more torque, more power, improved boost response, and lower EGTs, this turbine helps us achieve that.

This turbocharger can be sold with either Toyota genuine gaskets or an aftermarket kit depending on your budget.

On a 1HDT engine, we’ve seen boost coming in as low as 1200RPM, with 15psi available at 1500RPM.

A $150 discount is offered for an exchange for your old turbocharger.

Turbine high flow 9 blade:

68/52mm

23% lighter than the factory turbine

Specifications

Compressor GTX 11+0 blade (Toyota Supra sized):

Nose OD : 11.99 mm

Inducer OD: 45.82 mm

Exducer OD: 64.89 mm

Extend tapered tip exducer OD: 68.66 mm
