1HD-FTE Factory Turbocharger Upgrade — Stage 2

LCHUB SKU: 17201-FTEB
OEM: 17201-17010

This Stage 2 factory-style turbocharger has been purpose-built for early 1HD-FTE engines with the original Toyota-style (non-Garrett) turbo. Designed with New Zealand touring and four-wheel driving in mind, it delivers faster spool, stronger mid-range torque, and lower EGTs — without losing that factory bolt-on simplicity.

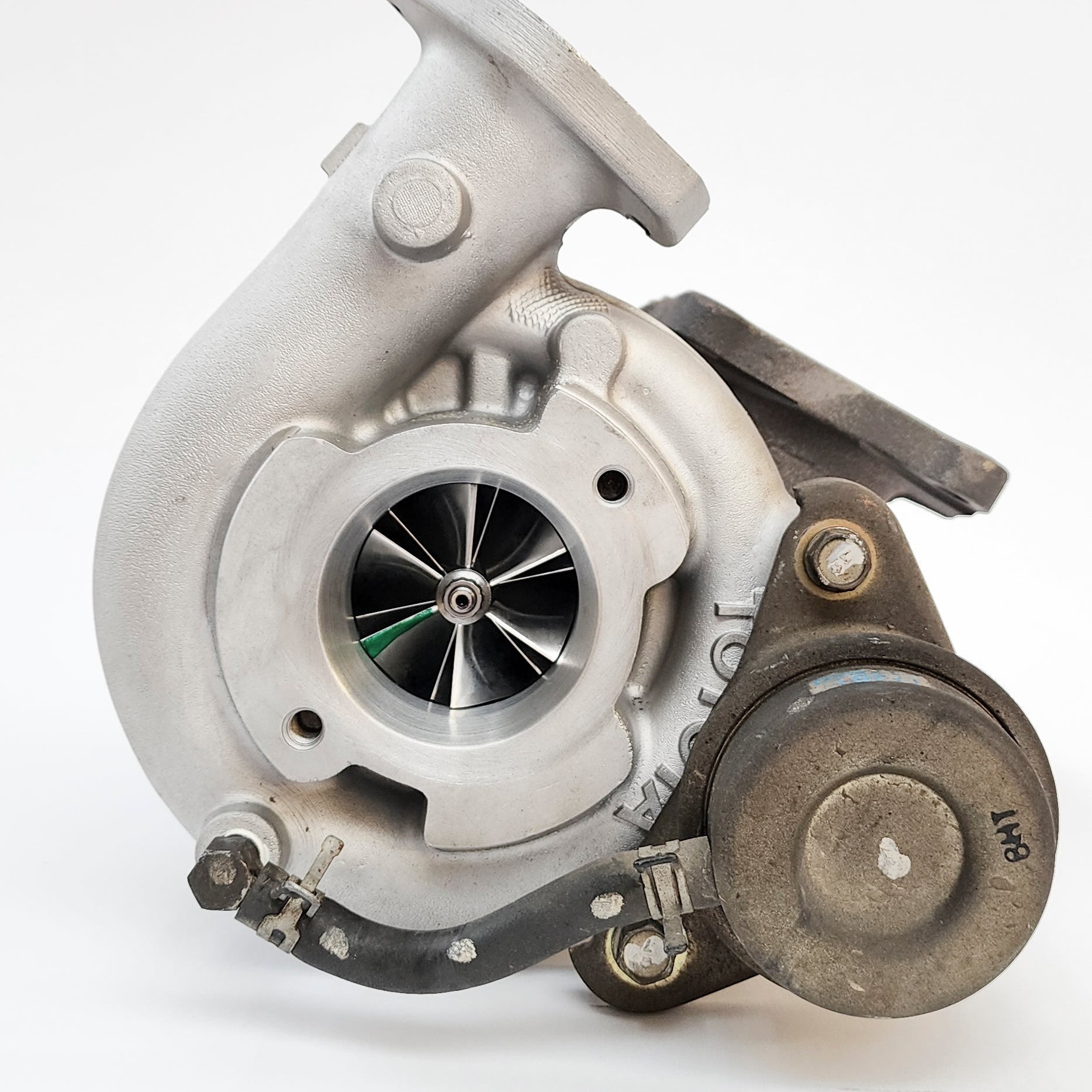

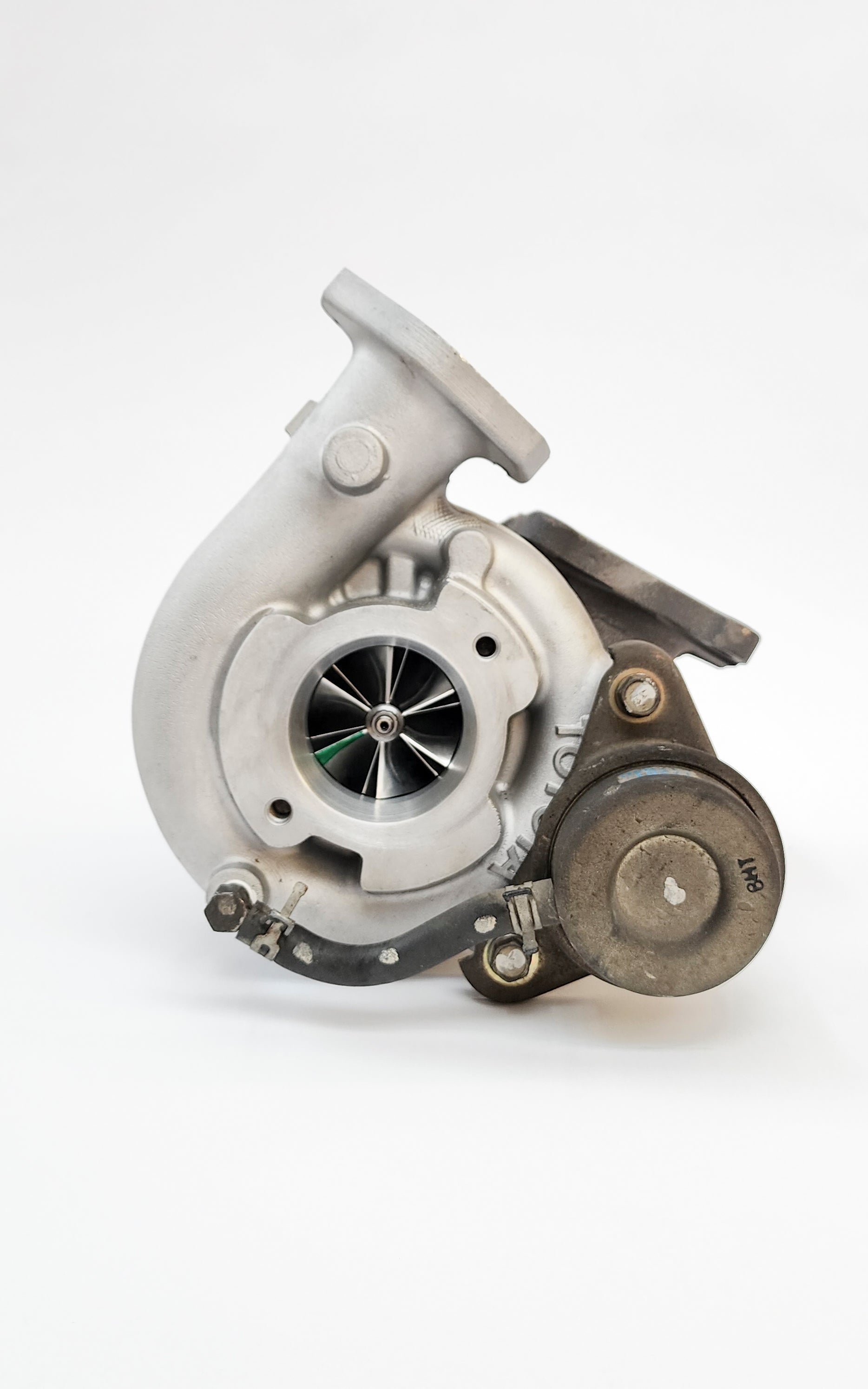

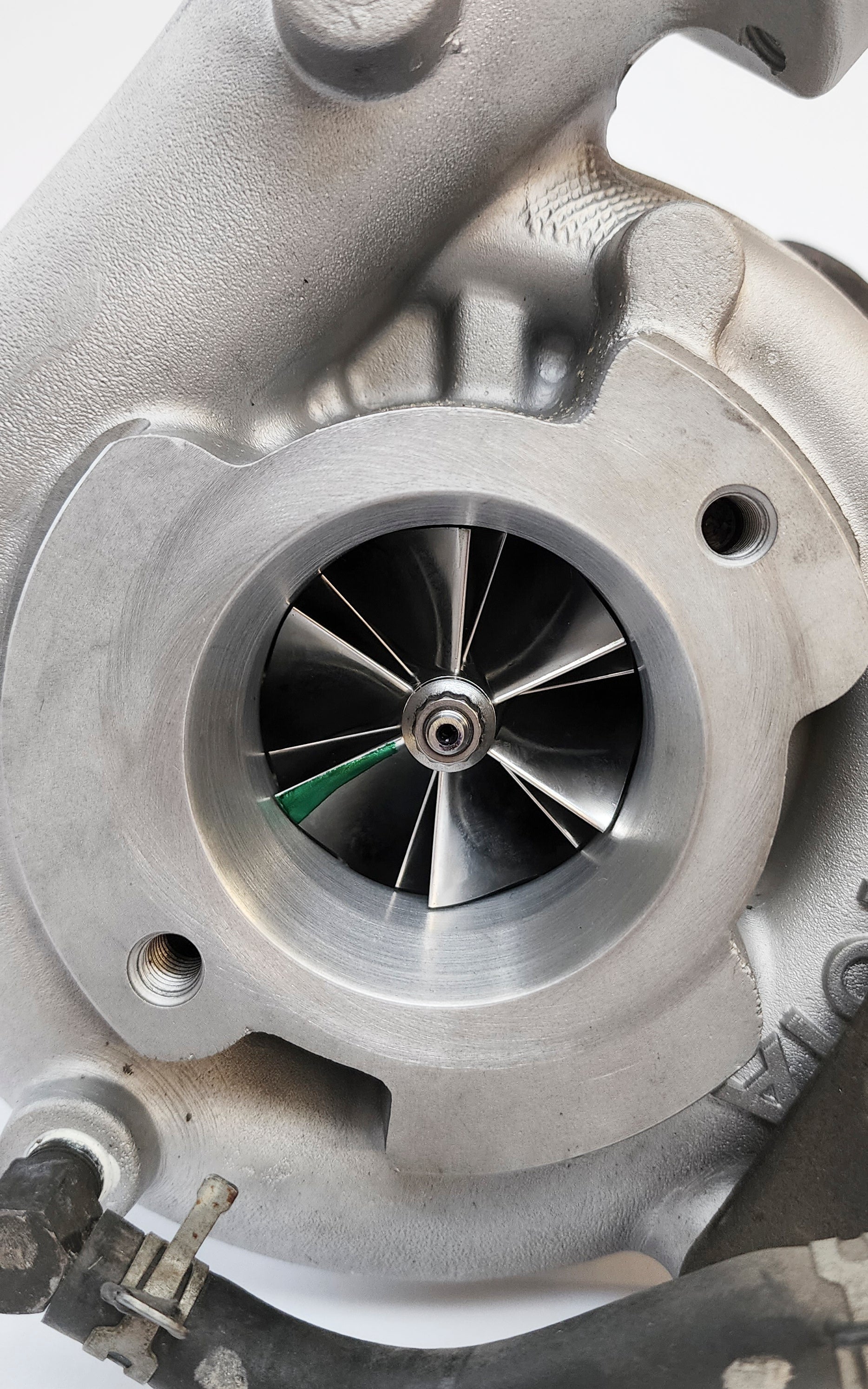

We’ve focused on response and drivability rather than chasing top-end numbers. Inside the genuine Toyota compressor and turbine housings sits a lightweight, re-engineered rotating assembly using a Supra-sized GTX billet compressor wheel, giving an 86% increase in overall size compared to the factory cast wheel while substantially reducing mass. The 45.8 mm compressor flows an impressive 38–40 lb/min, supported by an upgraded brass bearing system for improved load handling and durability.

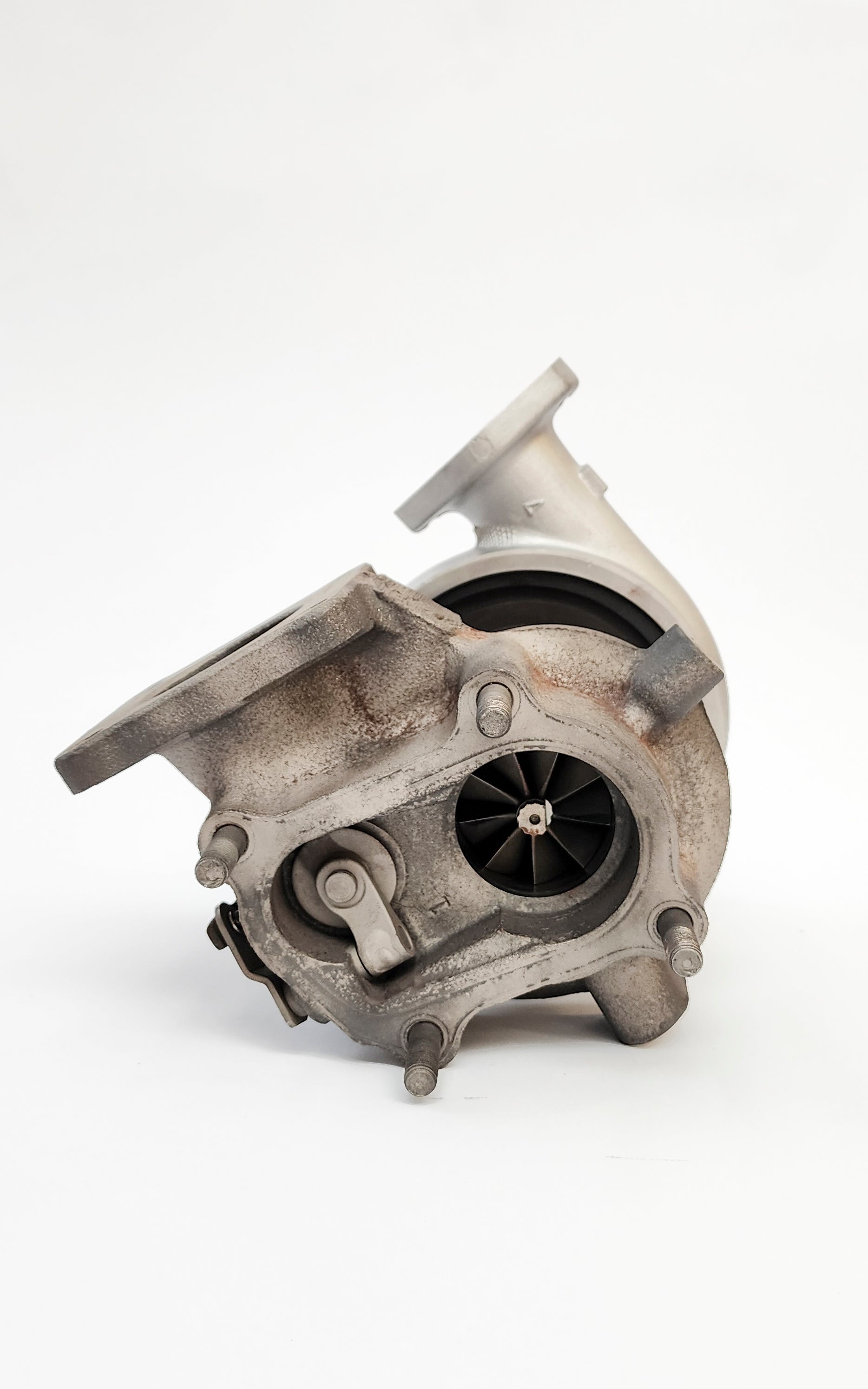

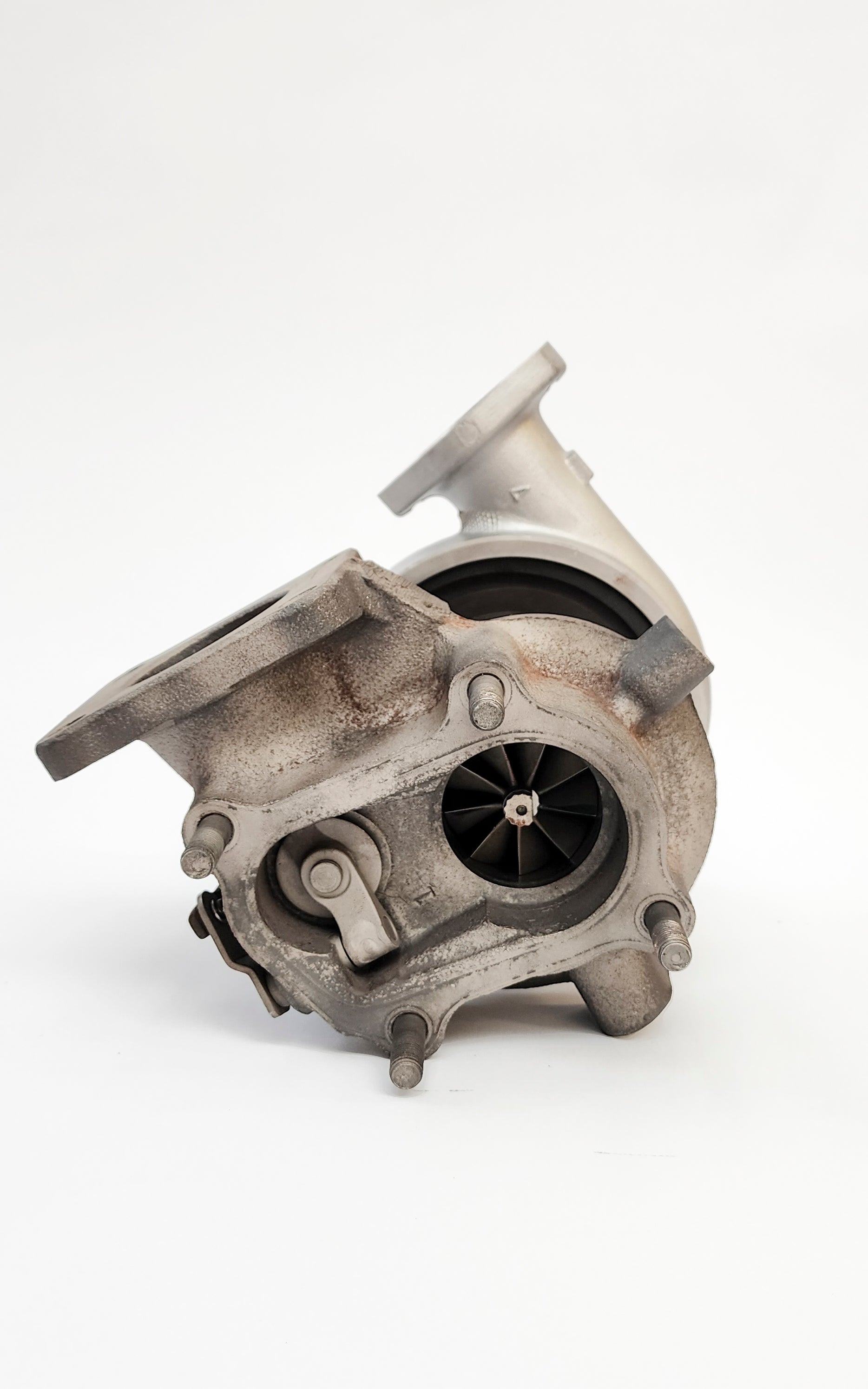

On the turbine side, a nine-blade high-flow wheel reduces weight by 23% and improves exhaust efficiency, contributing to noticeably sharper boost response and reduced back-pressure. The result is stronger torque delivery, improved towing performance, and more consistent EGT control — ideal for touring, towing, or tackling long climbs.

This turbocharger is available with your choice of Toyota genuine gasket kit or aftermarket gaskets, depending on your budget.

On a factory-fuelled 1HD-FTE, boost response begins from around 1200 RPM, with 15 psi achieved by roughly 1500 RPM, making it one of the most responsive upgrade options that retains all OEM fitment points.

A $150 exchange discount applies when you return your original turbocharger.

Turbine – High-flow 9-blade:
68/52 mm
23% lighter than factory turbine

Compressor – GTX 11+0 blade (Toyota Supra sized):
Nose OD: 11.99 mm
Inducer OD: 45.82 mm
Exducer OD: 64.89 mm
Extended tapered tip exducer OD: 68.66 mm

Land Cruiser Hub fitment note:

This product is listed for Toyota Land Cruiser 100 Series and 105 Series models.

Compatibility can still vary between 100 Series IFS and 105 Series solid front axle models, as well as engine, transmission, production date and vehicle modifications.

Need help? Not sure if this fits your vehicle? Contact us before ordering and we will help verify compatibility.
